SY8513 - 3A Asynchronous Step Down Regulator

Datasheet Summary

Description

The SY8513 develops a high efciency, current mode adaptive constant off time controlled, asynchronous step-down DC/DC converter capable of delivering 3A output current.

Features

  • cycle-by-cycle peak current limitation. Ordering Information SY8513.
  • (.
  • ).
  • Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY8513FCC SO8E -- Features.
  • Low RDS(ON) for Internal N-channel Power FET(TOP):150mΩ.
  • 4.5-100V Input Voltage Range.
  • 3A Output Current Capability.
  • Adjustable Switching Frequency Range: 100kHz to 500kHz.
  • Internal Soft-start Limits the Inrush Current.

📥 Download Datasheet

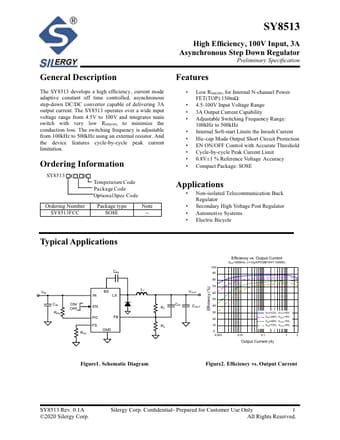

Datasheet preview – SY8513

Datasheet Details

Part number SY8513
Manufacturer Silergy
File Size 354.93 KB
Description 3A Asynchronous Step Down Regulator
Datasheet download datasheet SY8513 Datasheet
Additional preview pages of the SY8513 datasheet.

📁 Similar Datasheet

  • SY8022 - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)
  • SY8022L - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)
  • SY8201CABC - 30V 1A 1.4MHz Synchronous Step-Down Regulator (SUNGOOD)
  • SY8205 - N-Channel MOSFET (SANY)
  • SY826 - Special chips for e-cigarettes (AMICRO)
  • SY84113BU - Low Power 2.5V 1.25Gbps Limiting Post Amplifier (Micrel Semiconductor)
  • SY84402L - 4.25Gbps VCSEL Driver (Micrel Semiconductor)
  • SY84403BL - Ultra Small 3.3V 4.25Gbps CML Low-Power Limiting Post Amplifier (Micrel Semiconductor)
  • SY84782U - Low Power 2.5V 1.25Gbps FP/DFB Laser Diode Driver (Micrel Semiconductor)
  • SY8601 - Linear Li-Ion Battery Charger (TPS)
Other Datasheets by Silergy
  • SY8511 - 0.6A Asynchronous Step Down Regulator
  • SY8511B - 1.2A Asynchronous Step Down Regulator
  • SY8501 - Synchronous Step Down Regulator
  • SY8502 - Synchronous Step Down Regulator
  • SY8002A1 - 2A Synchronous Step Down Regulator
  • SY8002E1 - 2A Synchronous Step Down Regulator
  • SY8002I - 2A Synchronous Step Down Regulator
  • SY8003 - 1MHz Synchronous Step Down Regulator

Full PDF Text Transcription

Click to expand full text
SY8513 High Efficiency, 100V Input, 3A Asynchronous Step Down Regulator Preliminary Specification General Description The SY8513 develops a high efciency, current mode adaptive constant off time controlled, asynchronous step-down DC/DC converter capable of delivering 3A output current. The SY8513 operates over a wide input voltage range from 4.5V to 100V and integrates main switch with very low RDS(ON) to minimize the conduction loss. The switching frequency is adjustable from 100kHz to 500kHz using an external resistor. And the device features cycle-by-cycle peak current limitation.
