SY8032 - Synchronous Step Down Regulator

SY8032 Description

SY8032 High Efficiency 1MHz, 2.5A Continuous, 3A Peak, Synchronous Step Down Regulator General .
The SY8032 is a high-efficiency, high frequency synchronous step-down DC/DC regulator capable of delivering up to 2.

SY8032 Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 100mΩ/80mΩ, 2.5A
* 2.7-5.5V Input Voltage Range
* 2.5A Continuous, 3A Peak Load Current Capability
* High Switching Frequency Minimizes the External Components: 1MHz
* Internal Softstart Limits the Inrush Current
* 100% Dropou

SY8032 Applications

* LCD TV
* Set Top Box
* Net PC
* Mini-Notebook PC
* Access Point Router Typical Applications ON/ OFF EN VIN IN LX CIN GND FB PG L R1 R2 VOUT C1(opt. ) COUT Figure 1.Schematic diagram Efficiency (%) Efficiency vs. Load Current 95 Vin=3.3V Vin=4.2V 90 Vin=5.0V

📥 Download Datasheet

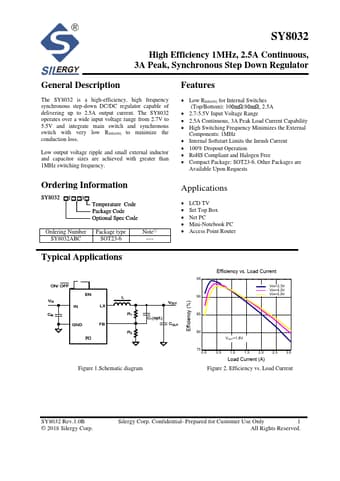

Preview of SY8032 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8032
Manufacturer
Silergy
File Size
592.73 KB
Datasheet
SY8032-Silergy.pdf
Description
Synchronous Step Down Regulator
