SY20611 - 1.2A Inductor Built-in Synchronous Step Down Regulator

Silergy

📥 Download Datasheet

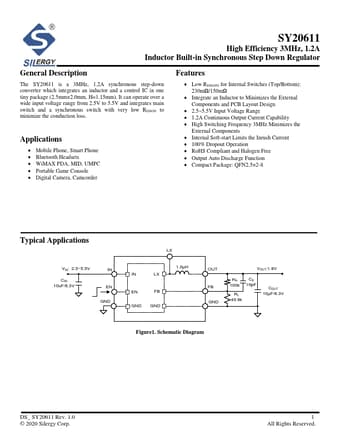

SY20611 Datasheet Preview — Preview of SY20611 PDF

Datasheet Details

Part number	SY20611
Manufacturer	Silergy
File Size	844.84 KB
Description	1.2A Inductor Built-in Synchronous Step Down Regulator
Datasheet	SY20611-Silergy.pdf

SY20611 Product details

Description

The SY20611 is a 3MHz, 1.2A synchronous step-down converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, H=1.15mm). Mobile Phone, Smart Phone Bluetooth Headsets WiMAX PDA, MID, UMPC Portable Game Console Digital Camera, Camcorder

Features

Low RDS(ON) for Internal Switches (Top/Bottom): 230mΩ/150mΩ.
Integrate an Inductor to Minimizes the External Components and PCB Layout Design.
2.5~5.5V Input Voltage Range.
1.2A Continuous Output Current Capability.
High Switching Frequency 3MHz Minimizes the External Components.
Internal Soft-start Limits the Inrush Current.
100% Dropout Operation.
RoHS Compliant and Halogen Free.
Output Auto Discharge Function.
Compact Package: QFN2.5×2-8 Typ.
