SLG59M1713V - 2A Integrated Power Switch

Description

Operating from a 2.5 V to 5.5 V power supply and fully specified over the -40 °C to 85 °C temperature range, the SLG59M1713V is a high-performance 4 mΩ, 2 A single-channel nFET integrated power switch with adjustable inrush current control which is achieved by adjusting the VOUT slew rate with an ex

Features

  • General.

📥 Download Datasheet

Datasheet Details

Part number SLG59M1713V
Manufacturer Silego
File Size 402.75 KB
Description 2A Integrated Power Switch
Datasheet download datasheet SLG59M1713V Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SLG59M1714V 4A Load Switch Renesas
SLG59M1717V 5A Integrated Power Switch Dialog Semiconductor
SLG59M1717V 5A Load Switch Renesas
SLG59M1709V 4A Load Switch Renesas
SLG59M1730C 1.0A pFET Load Switch Renesas

Other Datasheets by Silego

Part Number Description
SLG59M1710V 2A Integrated Power Switch
SLG59M1714V 4A Integrated Power Switch
SLG59M1717V Integrated Power Switch
SLG59M1707V 3.5A Integrated Power Switch
SLG59M1709V 4A Integrated Power Switch

Full PDF Text Transcription

Click to expand full text

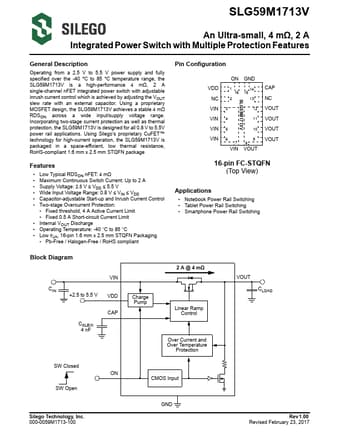

SLG59M1713V An Ultra-small, 4 mΩ, 2 A Integrated Power Switch with Multiple Protection Features General Description Operating from a 2.5 V to 5.5 V power supply and fully specified over the -40 °C to 85 °C temperature range, the SLG59M1713V is a high-performance 4 mΩ, 2 A single-channel nFET integrated power switch with adjustable inrush current control which is achieved by adjusting the VOUT slew rate with an external capacitor. Using a proprietary MOSFET design, the SLG59M1713V achieves a stable 4 mΩ RDSON across a wide input/supply voltage range. Incorporating two-stage current protection as well as thermal protection, the SLG59M1713V is designed for all 0.8 V to 5.5V power rail applications.
