SC9235 - 2-CH ELECTRONIC VOLUME CONTROLLER

Description

The SC9235 is an optimum CMOS IC which has been designed for electronization of volume control of audio equipment, etc.

Features

  • Attenuation can be controlled from 0dB to -78dB by up, down input.
  • This IC have 20dB tap for loudness circuit.
  • This IC features a built-in DC output circuit (7 level) for volume level meter.
  • Polysilicon resistors enables low-distortion, high-performance volume systems.
  • Volume level remains in backup mode with low current consumption.
  • Package is DIP16 and SOP16.

📥 Download Datasheet

Datasheet Details

Part number SC9235
Manufacturer Silan Semiconductors
File Size 217.89 KB
Description 2-CH ELECTRONIC VOLUME CONTROLLER
Datasheet download datasheet SC9235 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SC9201UA-L Self-Adjusting Hall-Effect Gear Tooth Sensor Semiment
SC900 Programmable Penta ULDO Semtech Corporation
SC900A Programmable Penta ULDO Semtech
SC9016-000 (SC9016-000 / SC9017-000) Fet Chip Mounting Capacit Alpha
SC9017-000 (SC9016-000 / SC9017-000) Fet Chip Mounting Capacit Alpha

Other Datasheets by Silan Semiconductors

Part Number Description
SC9235A 2-CH ELECTRONIC VOLUME CONTROLLER
SC9235S 2-CH ELECTRONIC VOLUME CONTROLLER
SC9200 DTMF GENERATORS
SC9200A DTMF GENERATORS
SC9200B DTMF GENERATORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

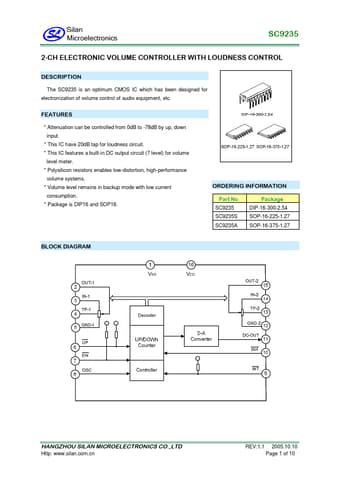

SC9235 2-CH ELECTRONIC VOLUME CONTROLLER WITH LOUDNESS CONTROL DESCRIPTION The SC9235 is an optimum CMOS IC which has been designed for electronization of volume control of audio equipment, etc. FEATURES * Attenuation can be controlled from 0dB to -78dB by up, down input. * This IC have 20dB tap for loudness circuit. * This IC features a built-in DC output circuit (7 level) for volume level meter. * Polysilicon resistors enables low-distortion, high-performance volume systems. * Volume level remains in backup mode with low current consumption. * Package is DIP16 and SOP16. ORDERING INFORMATION Part No. SC9235 SC9235S SC9235A Package DIP-16-300-2.54 SOP-16-225-1.27 SOP-16-375-1.27 BLOCK DIAGRAM HANGZHOU SILAN MICROELECTRONICS CO.,LTD Http: www.silan.com.cn REV:1.1 2005.10.
