SVSP11N70FD2, SVSP11N70FD2-SilanMicroelectronics, 700V SUPER JUNCTION MOS POWER TRANSISTOR

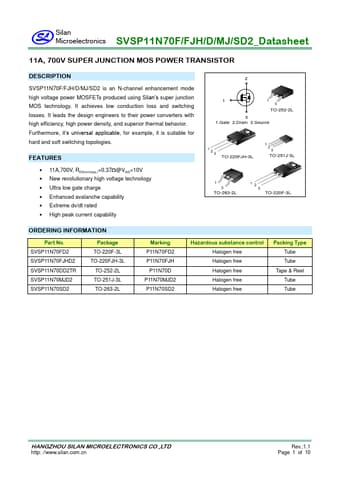

Silan Microelectronics SVSP11N70F/FJH/D/MJ/SD2_Datasheet 11A, 700V SUPER JUNCTION MOS POWER TRANSISTOR .
SVSP11N70F/FJH/D/MJ/SD2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s super junction MOS technology.

SVSP11N70FD2-SilanMicroelectronics_removed.pdf

SVSP11N70FD2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SVSP11N70FD2, SVSP11N70FD2-SilanMicroelectronics. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SVSP11N70FD2, SVSP11N70FD2-SilanMicroelectronics

Manufacturer:

Silan Microelectronics

File Size:

436.22 KB

Description:

700V SUPER JUNCTION MOS POWER TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: SVSP11N70FD2, SVSP11N70FD2-SilanMicroelectronics.
Please refer to the document for exact specifications by model.

Features

* 11A,700V, RDS(on)(typ. )=0.37@VGS=10V
* New revolutionary high voltage technology
* Ultra low gate charge
* Enhanced avalanche capability
* Extreme dv/dt rated
* High peak current capability 2 1 1 3 TO-252-2L 3 1.Gate 2.Drain 3.Source 1 2 3 TO-220FJH-3L 1 2 3 TO-251
