SVS4N80T, SVS4N80D - TRANSISTOR

Silan Microelectronics

📥 Download Datasheet

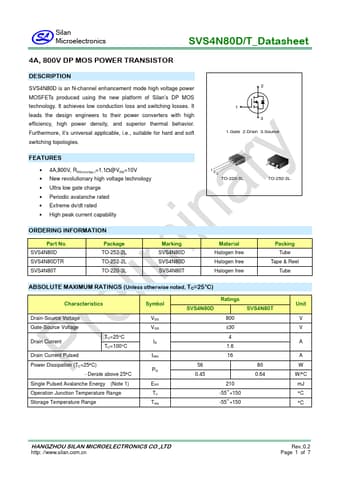

SVS4N80T Datasheet Preview — This datasheet PDF includes multiple part numbers: SVS4N80T, SVS4N80D. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SVS4N80T, SVS4N80D
Manufacturer: Silan Microelectronics
File Size: 374.13 KB
Datasheet: SVS4N80D-SilanMicroelectronics.pdf
Description: TRANSISTOR
Note: This datasheet PDF includes multiple part numbers: SVS4N80T, SVS4N80D.
Please refer to the document for exact specifications by model.

SVS4N80T Product details

Description

SVS4N80D is an N-channel enhancement mode high voltage power MOSFETs produced using the new platform of Silan’s DP MOS technology.

Features

4A,800V, RDS(on)(typ. )=1.1Ω@VGS=10V.
New revolutionary high voltage technology.
Ultra low gate charge.
Periodic avalanche rated.
Extreme dv/dt rated.
High peak current capability 123 TO-220-3L TO-252-2L.
