SVG086R0NS, SVG086R0NT - 80V N-CHANNEL MOSFET

Silan Microelectronics

The SVG086R0NS by Silan Microelectronics is a 80V N-CHANNEL MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SVG086R0NS, SVG086R0NT
Manufacturer	Silan Microelectronics
File Size	378.00 KB
Description	80V N-CHANNEL MOSFET
Datasheet	SVG086R0NT-SilanMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SVG086R0NS, SVG086R0NT. Please refer to the document for exact specifications by model.

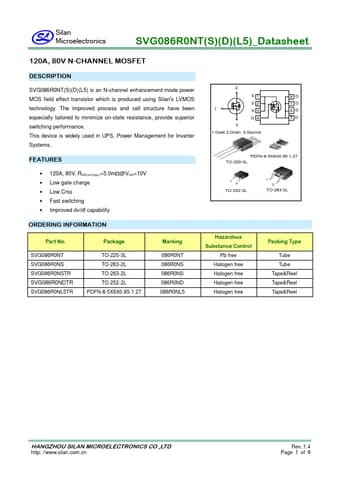

Additional preview pages of the SVG086R0NS datasheet.

SVG086R0NT(S)(D)(L5) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.

120A, 80V, RDS(on)(typ. )=5.0m@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability 2 S1 8D S2 7D 1 S3 6D G4 5D 3 1.Gate 2.Drain 3.Source 5 678 8765 43 21 1 234 PDFN-8-5X6X0.95-1.27 TO-220-3L 13 TO-252-2L 1 3 TO-263-2L.
