SVF7N65MJ - MOSFET

Download the SVF7N65MJ datasheet PDF (SVF7N65CF included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for mosfet.

Description

SVF7N65CF/D/MJ/K/S/FQ/T is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology.

Features

  • 7A, 650V, RDS(on)(typ. )=1.1Ω@VGS=10V.
  • Low gate charge.
  • Low Crss.
  • Fast switching.
  • Improved dv/dt capability TO-220F-3L TO-252-2L 12 3 12 3 TO-220FQ-3L TO-220-3L.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SVF7N65CF-SilanMicroelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SVF7N65MJ
Manufacturer Silan Microelectronics
File Size 468.45 KB
Description MOSFET
Datasheet download datasheet SVF7N65MJ Datasheet

📁 Similar Datasheet

Other Datasheets by Silan Microelectronics

Full PDF Text Transcription

Click to expand full text

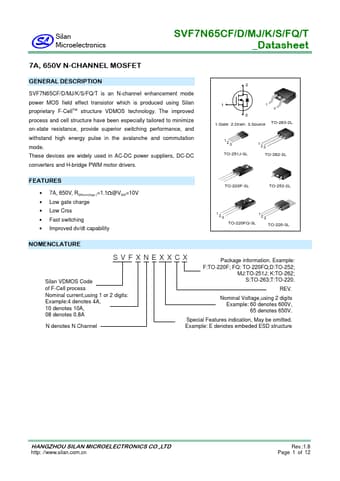

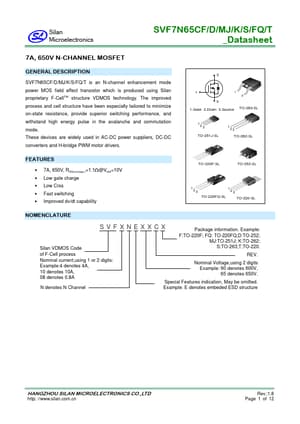

Silan Microelectronics SVF7N65CF/D/MJ/K/S/FQ/T _Datasheet 7A, 650V N-CHANNEL MOSFET GENERAL DESCRIPTION SVF7N65CF/D/MJ/K/S/FQ/T is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are widely used in AC-DC power suppliers, DC-DC converters and H-bridge PWM motor drivers. 2 11 3 3 1.Gate 2.Drain 3.Source TO-263-2L 12 3 TO-251J-3L 12 3 TO-262-3L FEATURES  7A, 650V, RDS(on)(typ.)=1.
