SVF3N80MN - 800V N-CHANNEL MOSFET

Download the SVF3N80MN datasheet PDF (SVF3N80MJ included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 800v n-channel mosfet.

Description

SVF3N80M/MJ/F/D/T/MN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology.

Features

  • 3A,800V,RDS(on)(typ. )=3.8@VGS=10V.
  • Low gate charge.
  • Low Crss.
  • Fast switching.
  • Improved dv/dt capability.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SVF3N80MJ-SilanMicroelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SVF3N80MN
Manufacturer Silan Microelectronics
File Size 659.76 KB
Description 800V N-CHANNEL MOSFET
Datasheet download datasheet SVF3N80MN Datasheet

📁 Similar Datasheet

Other Datasheets by Silan Microelectronics

Full PDF Text Transcription

Click to expand full text

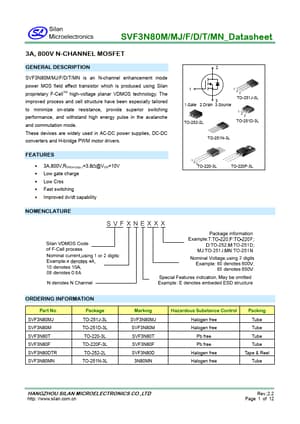

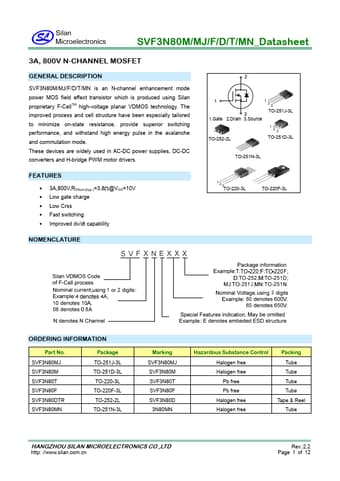

SVF3N80M/MJ/F/D/T/MN_Datasheet 3A, 800V N-CHANNEL MOSFET GENERAL DESCRIPTION SVF3N80M/MJ/F/D/T/MN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are widely used in AC-DC power supplies, DC-DC converters and H-bridge PWM motor drivers. FEATURES  3A,800V,RDS(on)(typ.)=3.8@VGS=10V  Low gate charge  Low Crss  Fast switching  Improved dv/dt capability NOMENCLATURE 2 1 1.Gate 1 23 TO-251J-3L 3 2.Drain 3.
