SVF2N70D, SVF2N70M - MOSFET

Silan Microelectronics

📥 Download Datasheet

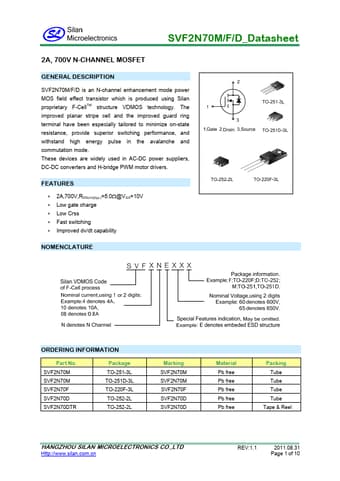

SVF2N70D Datasheet Preview — This datasheet PDF includes multiple part numbers: SVF2N70D, SVF2N70M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SVF2N70D, SVF2N70M
Manufacturer: Silan Microelectronics
File Size: 596.25 KB
Datasheet: SVF2N70M-SilanMicroelectronics.pdf
Description: MOSFET
Note: This datasheet PDF includes multiple part numbers: SVF2N70D, SVF2N70M.
Please refer to the document for exact specifications by model.

SVF2N70D Product details

Description

SVF2N70M/F/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology.

Features

∗ 2A,700V,RDS(on)(typ. )=5.0Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability.
