SVD8N80T - MOSFET

SVD8N80T Description

SVD8N80T/F_Datasheet 8A, 800V N-CHANNEL MOSFET GENERAL .
SVD8N80T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-RinTM structure DMOS technol.

SVD8N80T Features

* ∗ 8A,800V,RDS(on)（typ）=1.3Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING SPECIFICATIONS Part No. SVD8N80T SVD8N80F Package TO-220-3L TO-220F-3L Marking SVD8N80T SVD8N80F Material Pb free Pb free Packing Tube Tube HANGZHOU SILAN MICROE

📥 Download Datasheet

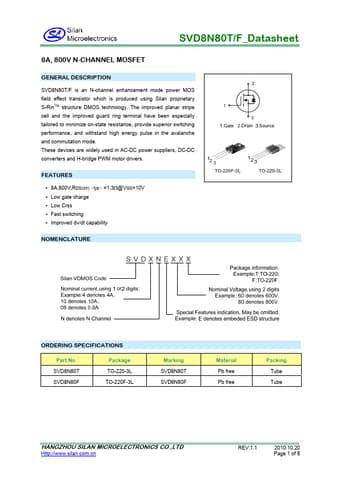

Preview of SVD8N80T PDF
datasheet Preview Page 2 datasheet Preview Page 3
