SVD1N60BTR, SVD1N60M, 600V N-CHANNEL MOSFET

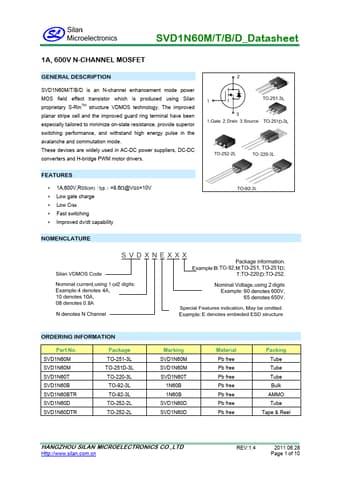

SVD1N60M/T/B/D_Datasheet 1A, 600V N-CHANNEL MOSFET GENERAL .
SVD1N60M/T/B/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-Rin TM structure VDMOS.

SVD1N60M-SilanMicroelectronics.pdf

SVD1N60BTR Datasheet Preview — This datasheet PDF includes multiple part numbers: SVD1N60BTR, SVD1N60M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SVD1N60BTR, SVD1N60M

Manufacturer:

Silan Microelectronics

File Size:

526.39 KB

Description:

600V N-CHANNEL MOSFET

Note:

This datasheet PDF includes multiple part numbers: SVD1N60BTR, SVD1N60M.
Please refer to the document for exact specifications by model.

Features

* ∗ ∗ ∗ ∗ ∗ 1A,600V,RDS(on)（typ. ）=8.6Ω@VGS=10V Low gate charge Low Crss Fast switching Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVD1N60M SVD1N60M SVD1N60T SVD1N60B SVD1N60BTR SVD1N60D SVD1N60DTR Package TO-251-3L TO-251D-3L TO-220-3L TO-92-3L TO-92-3L TO-252-2L TO-252-2L
