SVD13N50F, SVD13N50T - 500V N-CHANNEL MOSFET

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SVD13N50F, SVD13N50T. Please refer to the document for exact specifications by model.

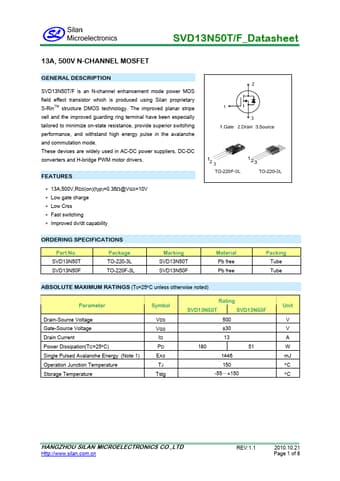

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number SVD13N50F, SVD13N50T
Manufacturer Silan Microelectronics
File Size 528.98 KB
Description 500V N-CHANNEL MOSFET
Datasheet download datasheet SVD13N50T-SilanMicroelectronics.pdf
Note This datasheet PDF includes multiple part numbers: SVD13N50F, SVD13N50T.
Please refer to the document for exact specifications by model.

SVD13N50F Product details

Description

SVD13N50T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-Rin TM structure DMOS technology.The improved planar stripe cell and the improved guarding ring terminal have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are widely used in AC-DC power suppliers, DC-DC converters and H-bridge PWM motor

Features
