SD7530 HIGH POWER FACTOR FLYBACK PWM CONTROLLER

SD7530 Description

SD7530_Datasheet HIGH POWER FACTOR FLYBACK PWM CONTROLLER .
SD7530 is a high power factor flyback PWM controller special for LED lighting applications.

SD7530 Features

* a high performance analog multiplier for power factor correction (PFC), zero current detector (ZCD) to ensure TM operation. It integrates a current sensing comparator with built-in leading-edge blanking, and a totem-pole output stage capable of -600mA /800mA current suited for big MOSFET. SD753

📥 Download Datasheet

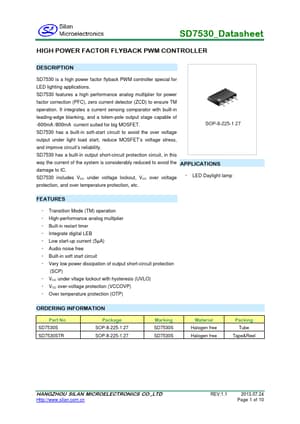

Preview of SD7530 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD7530
Manufacturer
Silan Microelectronics
File Size
254.85 KB
Datasheet
SD7530-SilanMicroelectronics.pdf
Description
HIGH POWER FACTOR FLYBACK PWM CONTROLLER
