SD42525 HIGH-EFFICIENCY HYSTERESIS LED DRIVER

SD42525 Description

SD42525_Datasheet 32V/1A, HIGH-EFFICIENCY HYSTERESIS LED DRIVER WITH BUILT-IN MOSFET .
SD42525 is a step-down constant current converter with inductance current continuous-conduction mode, it is used for driving LED or LEDs in series.

SD42525 Features

* LED backup lamp
* LED signal lamp
* Few peripheral elements
* Built-in 36V power MOSFET
* Wide input voltage range: 6V~32V
* Maximum 1A output current
* Excellent output current accuracy: ±3%
* Multiplex pin DIM is used for chip switch, analog dimming and PWM dimm

SD42525 Applications

* voltages is small. For SD42525, package of SOP-8-225, SOT-23-6L and SOT89-5L (no dimming) are available.
* Low-voltage LED spotlight, replacing Halogen lamp

📥 Download Datasheet

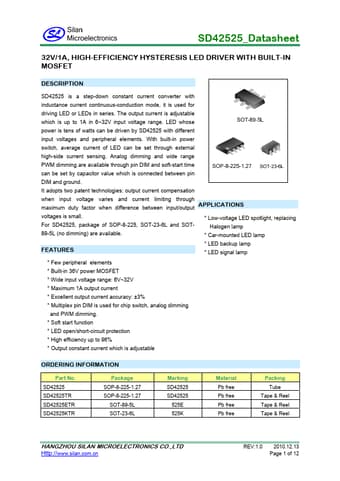

Preview of SD42525 PDF
