SD42351NE, SD42351 350MA WHITE SINGLE LED DRIVER

SD42351NE Description

SD42351 350MA WHITE SINGLE LED DRIVER .
The SD42351 is a low dropout current regulator rated for constant LED sink current.

SD42351NE Features

* No external component required.
* Fixed 110mA, 150 mA, 170 mA, 215 mA, 245mA, 270mA, 305mA, SOT-89-3 335mA sink current.
* Output short / open circuit protection.
* Low dropout voltage.
* Low quiescent current
* Build-in thermal protection
* Supply voltage range

SD42351NE Applications

* 2KV HBM ESD protection
* Advanced Bi-CMOS process.
* 1W Power LED driver ORDERING INFORMATION Package SOT-89-3 Type SD42351NA SD42351NB SD42351NC SD42351ND SD42351NE SD42351NG SD42351NH SD42351NL Seal 351A 351B 351C 351D 351E 351G 351H 351L Current Value (Typical) (mA) 335 305 27

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD42351NE, SD42351. Please refer to the document for exact specifications by model.

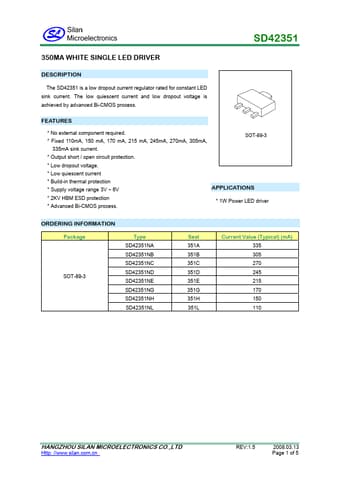

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD42351NE, SD42351
Manufacturer
Silan Microelectronics
File Size
259.76 KB
Datasheet
SD42351-SilanMicroelectronics.pdf
Description
350MA WHITE SINGLE LED DRIVER
Note
This datasheet PDF includes multiple part numbers: SD42351NE, SD42351.
Please refer to the document for exact specifications by model.
