SC74HC595D, SC74HC595 8BIT SHIFT REGISTER

Silan Microelectronics

Description

SC74HC595 8-BIT SHIFT REGISTER (SERIAL INPUT, 3S PARALLEL OUTPUT WITH LATCHES) .
SC74HC595 utilizes advanced CMOS technology, and has 8-bit shift register with serial input, serial/parallel output and 8bit tri-state output flip-l.

📥 Download Datasheet

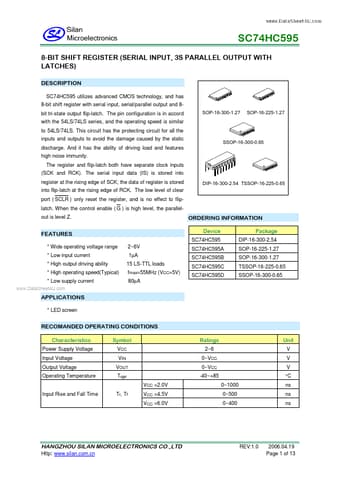

SC74HC595D Datasheet Preview — This datasheet PDF includes multiple part numbers: SC74HC595D, SC74HC595. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SC74HC595D, SC74HC595
Manufacturer: Silan Microelectronics
File Size: 301.42 KB
Datasheet: SC74HC595_SilanMicroelectronics.pdf
Description: 8BIT SHIFT REGISTER
Note: This datasheet PDF includes multiple part numbers: SC74HC595D, SC74HC595.
Please refer to the document for exact specifications by model.

Features

* SSOP-16-300-0.65 high noise immunity. The register and flip-latch both have separate clock inputs (SCK and RCK). The serial input data (IS) is stored into register at the rising edge of SCK; the data of register is stored into flip-latch at the rising edge of RCK. The low level of clear DIP-16
