SC7313S, SC7313 4-CH OUTPUT STEREO AUDIO PROCESSOR

SC7313S Description

SC7313 4-CH OUTPUT STEREO AUDIO PROCESSOR WITH 3 STEREO INPUTS AND TONE/VOLUME CONTROL .
The SC7313 is a volume, tone (bass and treble), balance (left/right) and fader (front/rear) processor for quality audio applications in car radio and.

SC7313S Features

* Input multiplexer:
* 3 stereo inputs
* Selectable input gain
* Four speaker attenuators:
* 4 independent speakers control in 1.25dB steps for balance and fader facilities
* Independent mute function
* All functions programmable via serial I2C Bus
* Loud

SC7313S Applications

* in car radio and Hi-Fi systems. Selectable input gain and external loudness function are provided. Control is accomplished by serial I2C bus microprocessor interface. The AC signal settings is obtained by resistor networks and switches combined with operational amplifiers. Due to the used CMOS techn

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SC7313S, SC7313. Please refer to the document for exact specifications by model.

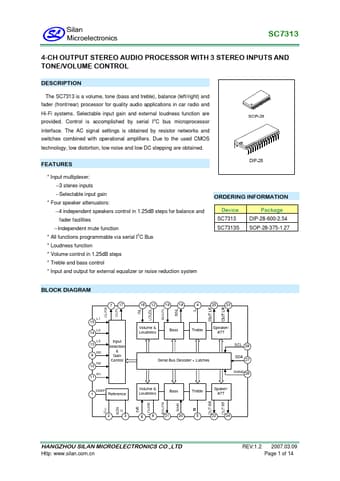

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC7313S, SC7313
Manufacturer
Silan Microelectronics
File Size
202.82 KB
Datasheet
SC7313-SilanMicroelectronics.pdf
Description
4-CH OUTPUT STEREO AUDIO PROCESSOR
Note
This datasheet PDF includes multiple part numbers: SC7313S, SC7313.
Please refer to the document for exact specifications by model.
