SC1308L - 2-CH HEADPHONE AMPLIFIER

Description

The SC1308L is a Class AB stereo headphone driver chip utilizing CMOS Technology specially designed for portable digital audio applications.

It is housed in an 8-pin DIP or SO package and is functionally compatible with TDA1308.

Features

  • DIP-8.
  • Wide temperature range.
  • CMOS Technology.
  • Excellent power supply ripple rejection.
  • Low power consumption.
  • High signal-to-noise ratio, S/N=110dB.
  • Low harmonic distortion.
  • Large output voltage swing.
  • Low supply voltage available BLOCK.

📥 Download Datasheet

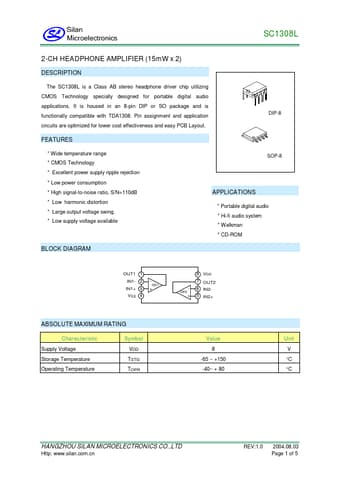

Datasheet preview – SC1308L

Datasheet Details

Part number SC1308L
Manufacturer Silan Microelectronics
File Size 70.88 KB
Description 2-CH HEADPHONE AMPLIFIER
Datasheet download datasheet SC1308L Datasheet
Additional preview pages of the SC1308L datasheet.
