SBD10C100F, SBD10C100T 100V SCHOTTKY RECTIFIER

SBD10C100F Description

SBD10C100T/F_Datasheet 10A, 100V SCHOTTKY RECTIFIER GENERAL .
SBD10C100T/F is schottky rectifier fabricated in silicon epitaxial planar technology.

SBD10C100F Features

* ∗ Guard ring for Stress Protection ∗ High Surge Capacity ∗ Low power loss , high efficiency ∗ Low forward voltage drop ORDERING SPECIFICATIONS Part No. SBD10C100T SBD10C100F Package TO-220-3L TO-220F-3L Marking SBD10C100T SBD10C100F Material Pb free Pb free Packing Tube Tube ABSOLUTE MAXIMUM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBD10C100F, SBD10C100T. Please refer to the document for exact specifications by model.

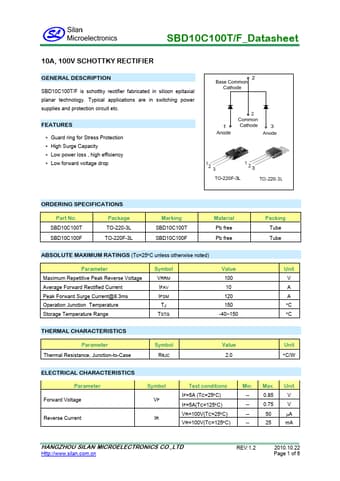

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBD10C100F, SBD10C100T
Manufacturer
Silan Microelectronics
File Size
233.00 KB
Datasheet
SBD10C100T-SilanMicroelectronics.pdf
Description
100V SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SBD10C100F, SBD10C100T.
Please refer to the document for exact specifications by model.
