SA9801 SINGLE STANDARD VIF-PLL DEMODULATOR AND FM-PLL DETECTOR

SA9801 Description

SA9801 SINGLE STANDARD VIF-PLL DEMODULATOR AND FM-PLL DETECTOR .
The SA9801 is a monolithic integrated circuit for vision and sound IF signal processing in TV and VTR sets and multimedia front-ends.

SA9801 Features

* ∗ Suitable for negative vision modulation ∗ Applicable for IF frequencies of 38.9, 45.75 and 58.75 MHz ∗ Gain controlled wide-band Vision Intermediate Frequency (VIF) amplifier (AC-coupled) ∗ True synchronous demodulation with active carrier regeneration (ultra-linear demodulation, good interm

SA9801 Applications

* ∗ AFC detector without extra reference circuit ∗ TV, VTR, PC and stb applications. ∗ Alignment-free FM-PLL detector with high linearity ∗ Stabilizer circuit for ripple rejection and to achieve constant output sig

📥 Download Datasheet

Preview of SA9801 PDF

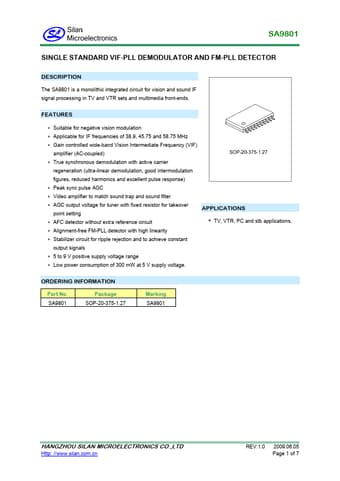

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA9801
Manufacturer
Silan Microelectronics
File Size
388.64 KB
Datasheet
SA9801-SilanMicroelectronics.pdf
Description
SINGLE STANDARD VIF-PLL DEMODULATOR AND FM-PLL DETECTOR
