SA7411S, SA7411 1CH AUDIO POWER AMPLIFIER

SA7411S Description

SA7411 1-CH AUDIO POWER AMPLIFIER(1W) .
SA7411 is a single channel audio power amplifier capable of delivering 1W of maximum output power to a 8Ω load using a single 9V supply at 10% THD.

SA7411S Features

* Max power 1W
* Single supply operation
* Integrated standby and mute function

SA7411S Applications

* Audio power amplifier with high performance
* TV
* Monitor SOP-8-225-1.27 ORDERING INFORMATION Device SA7411 SA7411S Package DIP-8-300-2.54 SOP-8-225-1.27 BLOCK DIAGRAM www. DataSheet4U. com ABSOLUTE MAXIMUM RATINGS (Tamb=25°C, unless otherwise specified) Characteristic Storage T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA7411S, SA7411. Please refer to the document for exact specifications by model.

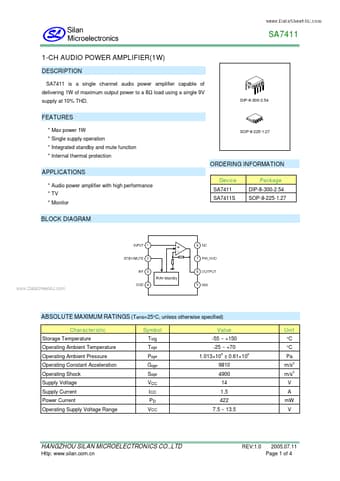

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA7411S, SA7411
Manufacturer
Silan Microelectronics
File Size
118.81 KB
Datasheet
SA7411_SilanMicroelectronics.pdf
Description
1CH AUDIO POWER AMPLIFIER
Note
This datasheet PDF includes multiple part numbers: SA7411S, SA7411.
Please refer to the document for exact specifications by model.
