SA1466 - 5-CH CD PLAYER OPU DRIVER

Description

The SA1466 is a five-channel BTL driver IC for driving the motors and actuators in products such as CD drivers.

It is also build-in two independent precision voltage regulators with adjustable range from 1.5V to 4V and one channel bi-direction DC motor driver for tray.

Features

  • Wide dynamic range (4.0V (Typ. ) when VCC = 8V, PVCC =5V, and RL = 8Ω).
  • Level shift circuit on chip. HSOP - 28-375-0.8.
  • Thermal shutdown circuit on chip.
  • Mute mode built-in.
  • Two regulator controllers built-in.
  • Five drivers build-in: dual actuator drivers, sled motor driver, spindle driver and tray in-out driver.

📥 Download Datasheet

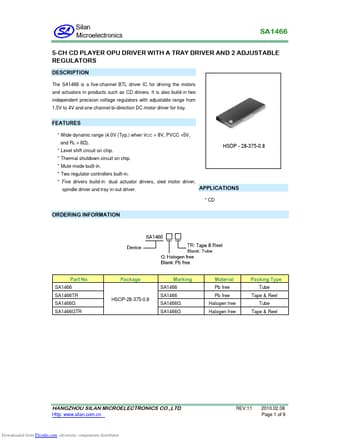

Datasheet preview – SA1466

Datasheet Details

Part number SA1466
Manufacturer Silan Microelectronics
File Size 287.31 KB
Description 5-CH CD PLAYER OPU DRIVER
Datasheet download datasheet SA1466 Datasheet
