SA1021 FM RADIO RECEIVER

SA1021 Description

SA1021 FM RADIO RECEIVER FOR PORTABLE SYSTEM .
The SA1021 integrated radio receiver circuit is for portable radios, stereo as well as mono, where a minimum of periphery is important in terms of sma.

SA1021 Features

* RF input stage
* Local oscillator
* Frequency detector
* MTS compatible
* Internal reference circuit
* Field-strength dependent channel separation control facility. www. DataSheet4U. com BLOCK DIAGRAM 12 13 11 10 7 8 RF MIX AMP Buffer IF Filter 5 OSC VCO MUTE CLIM 6

SA1021 Applications

* using the low-voltage micro tuning system (MTS). The IC has a frequency locked loop (FLL) system with an intermediate frequency of 76kHz. The selectivity is obtained by active RC filters. The only function to be tuned is the resonant frequency of the oscillator. Interstation noise as well as noise fr

📥 Download Datasheet

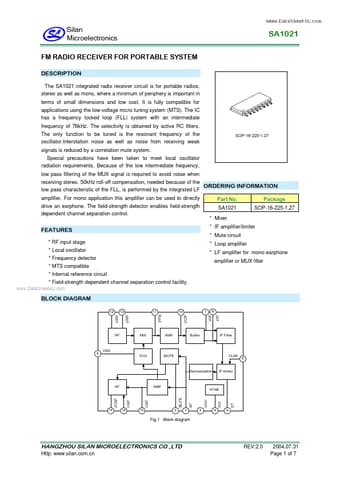

Preview of SA1021 PDF
