V23042-B2355-B101, V23042-1 High Dielectric Polarized PC Board Relay

Siemens

Description

V23042 series 2 Pole, High Dielectric Polarized PC Board Relay .

📥 Download Datasheet

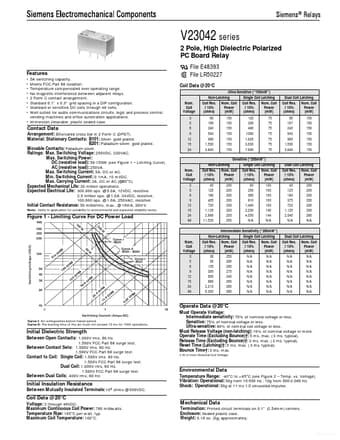

V23042-B2355-B101 Datasheet Preview — This datasheet PDF includes multiple part numbers: V23042-B2355-B101, V23042-1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: V23042-B2355-B101, V23042-1
Manufacturer: Siemens
File Size: 56.60 KB
Datasheet: V23042-1_Siemens.pdf
Description: High Dielectric Polarized PC Board Relay
Note: This datasheet PDF includes multiple part numbers: V23042-B2355-B101, V23042-1.
Please refer to the document for exact specifications by model.

Features

* 5A switching capacity. Meets FCC Part 68 isolation. Temperature compensated over operating range. No magnetic interference between adjacent relays. 2 Form C contact arrangement. Standard 0.1” x 0.3” grid spacing in a DIP

Applications

* Immersion cleanable, plastic sealed case. File E48393 File LR50227 Coil Data @ 20°C Ultra-Sensitive (“150mW”) Non-Latching Single Coil Latching Coil Res. Nom. Coil Coil Res. Nom. Coil ± 10% Power ± 10% Power (ohms) (mW) (ohms) (mW) 60 165 240 540 960 1,500 3,840 150 150 150 150 150 150 1
