V23042-A2005-B201 - Small relay

Download the V23042-A2005-B201 datasheet PDF. This datasheet also covers the V23042 variant, as both devices belong to the same small relay family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • q Universally applicable in the most varied circuit functions in the field of telecommunications and small signal technology Versatile design as it can be delivered with different power consumptions (PN = 150 to 250 mW) as well as with reversed coil polarity High reliability due to slide-free operation of the middle spring High-voltage resistance according to FCC Part 68 Approx. 1.5 x original size q q ECR0983-1 q Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V23042_Siemens.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
V23047 Force Guided Relay TE
V23049-B1007-A131 Relays Tyco
V23003 Signal Relays TE
V23003 Cradle Relay Tyco
V23005 Cradle Relay Tyco

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
V23042-A2005-B101 Small relay
V23042-A2005-B101 High Dielectric Polarized PC Board Relay
V23042-A2001-B101 Small relay
V23042-A2001-B101 High Dielectric Polarized PC Board Relay
V23042-A2001-B201 Small relay

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

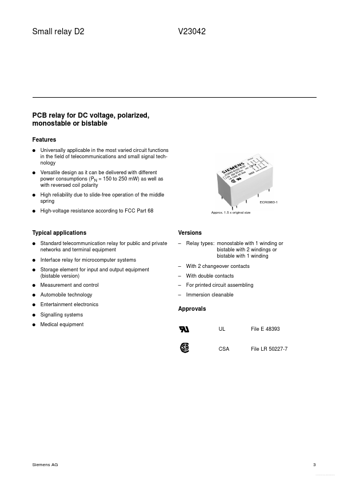

Small relay D2 V23042 PCB relay for DC voltage, polarized, monostable or bistable Features q Universally applicable in the most varied circuit functions in the field of telecommunications and small signal technology Versatile design as it can be delivered with different power consumptions (PN = 150 to 250 mW) as well as with reversed coil polarity High reliability due to slide-free operation of the middle spring High-voltage resistance according to FCC Part 68 Approx. 1.
