T7N 10 Amp Miniature PC Board Relay

Siemens

Description

T7N series 10 Amp Miniature PC Board Relay File E22575 File LR48471 .

📥 Download Datasheet

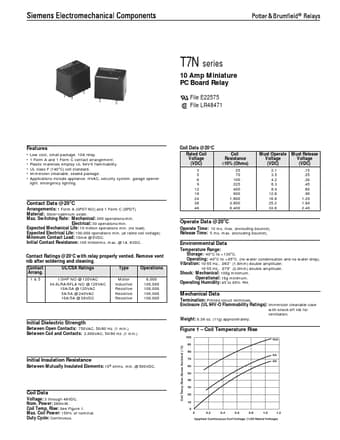

T7N Datasheet Preview — Preview of T7N PDF

Datasheet Specifications

Part number: T7N
Manufacturer: Siemens
File Size: 44.12 KB
Datasheet: T7N-Siemens.pdf
Description: 10 Amp Miniature PC Board Relay

Features

* Low cost, small package, 10A relay.
* 1 Form A and 1 Form C contact arrangement.
* Plastic materials employ UL 94V-0 flammability.
* UL class F (140°C) coil standard.
* Immersion cleanable, sealed package.

Applications

* include appliance, HVAC, security system, garage opener light, emergency lighting. Contact Data @ 20°C Arrangements: 1 Form A (SPST-NO) and 1 Form C (SPDT). Material: Silver-cadmium oxide. Max. Switching Rate: Mechanical: 300 operations/min. Electrical: 30 operations/min. Expected Mechanical Life:
