SDA9220-5 - Memory Sync Controller III

Siemens

The SDA9220-5 by Siemens is a Memory Sync Controller III. Below is the official datasheet preview.

📥 Download Datasheet

SDA9220-5 Memory Sync Controller III by Siemens - Datasheet Preview — Official preview page of the **SDA9220-5** Memory Sync Controller III datasheet (Siemens).

Datasheet Details

Part number	SDA9220-5
Manufacturer	Siemens
File Size	1.44 MB
Description	Memory Sync Controller III
Datasheet	SDA9220-5_SiemensSemiconductorGroup.pdf
Additional preview pages of the SDA9220-5 datasheet.

SDA9220-5 Product details

Description

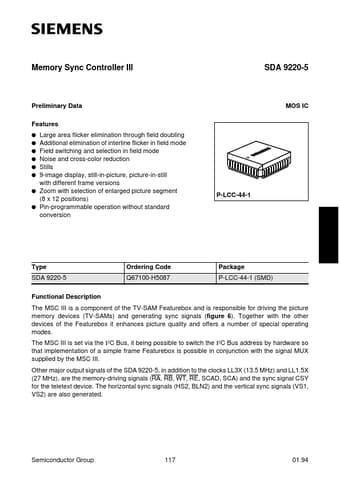

Ordering Code Q67100-H5087 Package P-LCC-44-1 (SMD) The MSC III is a component of the TV-SAM Featurebox and is responsible for driving the picture memory devices (TV-SAMs) and generating sync signals (figure 6).Together with the other devices of the Featurebox it enhances picture quality and offers a number of special operating modes.The MSC III is set via the I2C Bus, it being possible to switch the I2C Bus address by hardware so that implementation of a simple frame Featurebox is possible

Features

Large area flicker elimination through field doubling Additional elimination of interline flicker in field mode Field switching and selection in field mode Noise and cross-color reduction Stills 9-image display, still-in-picture, picture-in-still with different frame versions q Zoom with selection of enlarged picture segment (8 x 12 positions) q Pin-programmable operation without standard conversion q q q q q q MOS IC P-LCC-44-1 Type SDA 9220-5 Functional.
