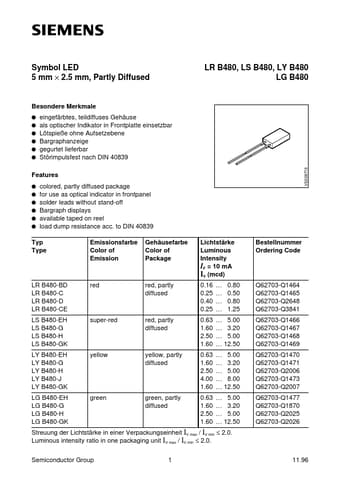

LGB480 - Symbol LED

Siemens

Datasheet Details

q colored, partly diffused package q for use as optical indicator in frontpanel q solder leads without stand-off q Bargraph displays q available taped on reel q load dump resistance acc. to DIN 40839 Typ Type LR B480-BD LR B480-C LR B480-D LR B480-CE Emissionsfarbe Gehäusefarbe Color of Color of Emission Package red red, partly diffused Lichtstärke Luminous Intensity IF = 10 mA IV (mcd) 0.16 … 0.80 0.25 … 0.50 0.40 … 0.80 0.25 … 1.25 LS B480-EH LS B480-G LS B480-H LS B480-GK super-red.
