SLX24C164 - 16 Kbit 2048 x 8 bit Serial CMOS EEPROMs/ I2C Synchronous 2-Wire Bus

Siemens Semiconductor Group

The SLX24C164 by Siemens Semiconductor Group is a 16 Kbit 2048 x 8 bit Serial CMOS EEPROMs/ I2C Synchronous 2-Wire Bus. Below is the official datasheet preview.

📥 Download Datasheet

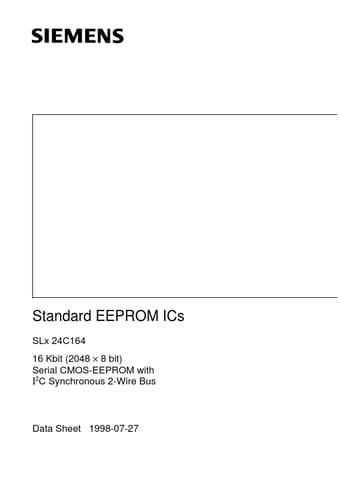

SLX24C164 16 Kbit 2048 x 8 bit Serial CMOS EEPROMs/ I2C Synchronous 2-Wire Bus by Siemens Semiconductor Group - Datasheet Preview — Official preview page of the **SLX24C164** 16 Kbit 2048 x 8 bit Serial CMOS EEPROMs/ I2C Synchronous 2-Wire Bus datasheet (Siemens Semiconductor Group).

Datasheet Details

Part number	SLX24C164
Manufacturer	Siemens Semiconductor Group
File Size	315.37 KB
Description	16 Kbit 2048 x 8 bit Serial CMOS EEPROMs/ I2C Synchronous 2-Wire Bus
Datasheet	SLX24C164_SiemensSemiconductorGroup.pdf
Additional preview pages of the SLX24C164 datasheet.

SLX24C164 Product details

Description

Serial Clock (SCL) The SCL input is used to clock data into the device on the rising edge and to clock data out of the device on the falling edge.

Features

Data EEPROM internally organized as 2048 bytes and 128 pages × 16 bytes.
Low power CMOS.
VCC = 2.7 to 5.5 V operation.
Two wire serial interface bus, I2C-Bus compatible.
Three chip select pins to address 8 devices.
Filtered inputs for noise suppression with Schmitt trigger.
Clock frequency up to 400 kHz.
High programming flexibility.
Internal programming voltage.
Self timed programming cycle including eras.
