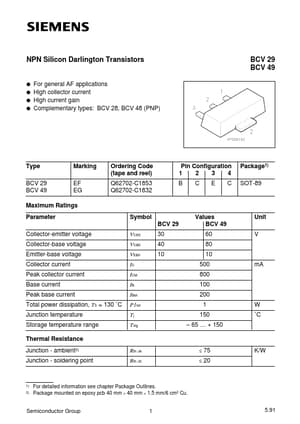

NPN Silicon Darlington Transistors
BCV 29 BCV 49
For general AF applications q High collector current q High current gain q Complementary types: BCV 28, BCV 48 (PNP)
q
Type BCV 29 BCV 49
Marking EF EG
Ordering Code (tape and reel) Q62702-C1853 Q62702-C1832
Pin Configuration 1 2 3 4 B C E C
Package1) SOT-89
Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Peak collector current Base current Peak base current Total power dissipation, TS = 130 ˚C Junction temperature Storage temperature range Thermal Resistance Junction - ambient2) Junction - soldering point Rth JA Rth JS
≤ ≤
Symbol BCV 29 VCE0 VCB0 VEB0 IC ICM IB IBM P1tot Tj Tstg 30 40 10
Values BCV 49 60 80 10 500 800 100 200 1 150 – 65 … + 150
Unit V
mA
W ˚C
75
