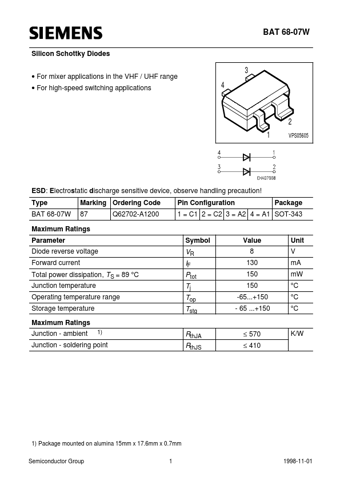

BAT 68-07W Silicon Schottky Diodes • For mixer applications in the VHF / UHF range • For high-speed switching applications 3 4 2 1 VPS05605 ESD: Electrostatic discharge sensitive device, observe handling precaution! Type BAT 68-07W Marking Ordering Code 87 Q62702-A1200 Pin Configuration Package 1 = C1 2 = C2 3 = A2 4 = A1 SOT-343 Maximum Ratings Parameter Diode reverse voltage Forward current Total power dissipation, T S = 89 °C Junction temperature Operating temperature range Storage temperature Maximum Ratings Junction - ambient 1) Symbol Value 8 130 150 150 -65...+150 - 65 ...+150 Unit V mA mW °C °C °C VR IF Ptot Tj Top Tstg RthJA RthJS ≤ 570 ≤ 410 K/W Junction - soldering point 1) Package mounted on alumina 15mm x 17.6mm x 0.
