KTY23-5 - Silicon Spreading Resistance Temperature Sensor in Surface Mount Technology

Product Overview

Siemens Semiconductor Group

Part number	KTY23-5
Manufacturer	Siemens Semiconductor Group
File Size	25.98 KB
Description	Silicon Spreading Resistance Temperature Sensor in Surface Mount Technology
Datasheet	KTY23-5 Datasheet

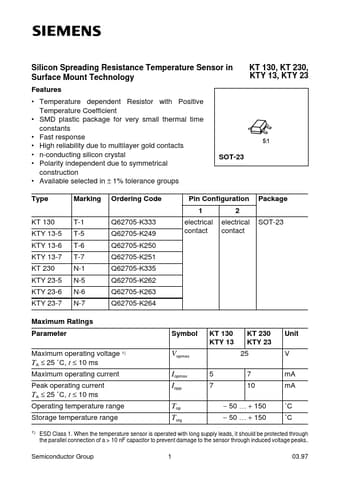

Additional preview pages of the KTY23-5 datasheet.

Temperature dependent Resistor with Positive Temperature Coefficient.
SMD plastic package for very small thermal time constants.
Fast response.
High reliability due to multilayer gold contacts.
n-conducting silicon crystal.
Polarity independent due to symmetrical construction.
Available selected in ± 1% tolerance groups Type KT 130 KTY 13-5 KTY 13-6 KTY 13-7 KT 230 KTY 23-5 KTY 23-6 KTY 23-7 Marking T-1 T-5 T-6 T-7 N-1 N-5 N-6 N-7 O.
