IL4116 - ZERO VOLTAGE CROSSING TRIAC DRIVER OPTOCOUPLER

General Description

The IL411x consists of an AlGaAs IRLED optically coupled to a photosensitive zero crossing TRIAC network.

The TRIAC consists of two inverse parallel connected monolithic SCRs.

Key Features

  • High Input Sensltlvity: IFT=1.3 mA, PF=1.0; IFT=3.5 mA, Typlcal PF < 1.0.
  • Zero Voltage Crosslng.
  • 600/700/800 V Blocklng Voltage.
  • 300 mA On-State Current.
  • High Statlc dv/dt 10,000 V/µsec. , typical.
  • Inverse Parallel SCRs Provide Commutatlng dv/dt >10 KV/msec.
  • Very Low Leakage.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IL410 Optocoupler Vishay
IL41050 Isolated High-Speed CAN Transceiver NVE
IL4108 Optocoupler Vishay
IL4145A Low Power Ground Fault Interrupter IK Semiconductor
IL420 Optocoupler Vishay Siliconix

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
IL4117 ZERO VOLTAGE CROSSING TRIAC DRIVER OPTOCOUPLER
IL4118 ZERO VOLTAGE CROSSING TRIAC DRIVER OPTOCOUPLER
IL410 RIAC DRIVER OPTOCOUPLER
IL4108 TRIAC DRIVER OPTOCOUPLER
IL400 PHOTO SCR OPTOCOUPLER

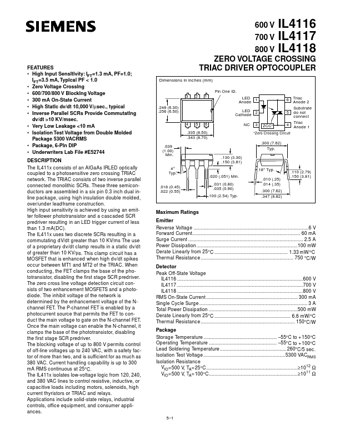

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
IL4116 700 V IL4117 800 V IL4118 600 V FEATURES • High Input Sensltlvity: IFT=1.3 mA, PF=1.0; IFT=3.5 mA, Typlcal PF < 1.0 • Zero Voltage Crosslng • 600/700/800 V Blocklng Voltage • 300 mA On-State Current • High Statlc dv/dt 10,000 V/µsec., typical • Inverse Parallel SCRs Provide Commutatlng dv/dt >10 KV/msec. • Very Low Leakage <10 mA • Isolation Test Voltage from Double Molded Package 5300 VACRMS • Package, 6-Pln DIP • Underwriters Lab File #E52744 DESCRIPTION The IL411x consists of an AlGaAs IRLED optically coupled to a photosensitive zero crossing TRIAC network. The TRIAC consists of two inverse parallel connected monolithic SCRs. These three semiconductors are assembled in a six pin 0.3 inch dual inline package, using high insulation double molded, over/under leadframe construction.
