IL213A - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER

Description

The IL211A/212A/213A are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor.

Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output.

Features

  • High Current Transfer Ratio IL211A.
  • 20% Minimum IL212A.
  • 50% Minimum IL213A.
  • 100% Minimum.
  • Isolation Voltage, 2500 VACRMS.
  • Electrical Specifications Similar to Standard 6 Pin Coupler.
  • Industry Standard SOIC-8 Surface Mountable Package.
  • Standard Lead Spacing, .05".
  • Available in Tape and Reel Option (Conforms to EIA Standard RS481A).
  • Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering.
  • Underwriter.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IL213AT Optocoupler Vishay
IL211AT Optocoupler Vishay
IL212AT Optocoupler Vishay
IL2010BD PHASE CONTROL SCHEME FOR CURRENT FEEDBACK Integral
IL2010BN PHASE CONTROL SCHEME FOR CURRENT FEEDBACK Integral

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
IL213AT PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER
IL213 PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER
IL211 PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER
IL211A PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER
IL211AT PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

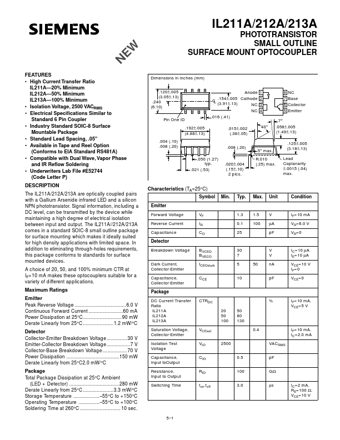

IL211A/212A/213A N EW PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER FEATURES • High Current Transfer Ratio IL211A—20% Minimum IL212A—50% Minimum IL213A—100% Minimum • Isolation Voltage, 2500 VACRMS • Electrical Specifications Similar to Standard 6 Pin Coupler • Industry Standard SOIC-8 Surface Mountable Package • Standard Lead Spacing, .05" • Available in Tape and Reel Option (Conforms to EIA Standard RS481A) • Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering • Underwriters Lab File #E52744 (Code Letter P) DESCRIPTION The IL211A/212A/213A are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor.
