IL2 - PHOTOTRANSISTOR OPTOCOUPLER

Description

The IL1/2/5 are optically coupled isolated pairs employing GaAs infrared LEDs and silicon NPN phototransistor.

Signal information, including a DC level, can be transmitted by the drive while maintaining a high degree of electrical isolation between input and output.

Features

  • Current Transfer Ratio at IF=10 mA IL1, 20% Min. IL2, 100% Min. IL5, 50% Min.
  • High Collector-Emitter Voltage IL1.
  • BVCEO=50 V IL2, IL5.
  • BVCEO=70 V.
  • Field-Effect Stable by TRansparent IOn Shield (TRIOS).
  • Double Molded Package Offers Isolation Test Voltage 5300 VACRMS.
  • Underwriters Lab File #E52744 V.
  • VDE Approval #0884 (Available with Option 1) D E Dimensions in inches (mm) Pin One ID 3 .248 (6.30) .256 (6.50) 4 5 6 2 1 Ano.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IL2010BD PHASE CONTROL SCHEME FOR CURRENT FEEDBACK Integral
IL2010BN PHASE CONTROL SCHEME FOR CURRENT FEEDBACK Integral
IL205AT Optocoupler / Phototransistor Vishay Siliconix
IL206AT Optocoupler / Phototransistor Vishay Siliconix
IL207AT Optocoupler / Phototransistor Vishay Siliconix

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
IL201 PHOTOTRANSISTOR OPTOCOUPLER
IL202 PHOTOTRANSISTOR OPTOCOUPLER
IL203 PHOTOTRANSISTOR OPTOCOUPLER
IL205A SMALL OUTLINE SURFACE MOUNT PHOTOTRANSISTOR OPTOCOUPLER
IL205AT PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER

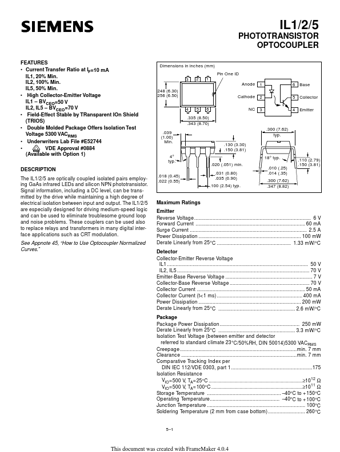

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
IL1/2/5 PHOTOTRANSISTOR OPTOCOUPLER FEATURES • Current Transfer Ratio at IF=10 mA IL1, 20% Min. IL2, 100% Min. IL5, 50% Min. • High Collector-Emitter Voltage IL1 – BVCEO=50 V IL2, IL5 – BVCEO=70 V • Field-Effect Stable by TRansparent IOn Shield (TRIOS) • Double Molded Package Offers Isolation Test Voltage 5300 VACRMS • Underwriters Lab File #E52744 V • VDE Approval #0884 (Available with Option 1) D E Dimensions in inches (mm) Pin One ID 3 .248 (6.30) .256 (6.50) 4 5 6 2 1 Anode 1 Cathode 2 NC 3 6 Base 5 Collector 4 Emitter .335 (8.50) .343 (8.70) .039 (1.00) Min. 4° typ. .018 (0.45) .022 (0.55) .300 (7.62) typ. .130 (3.30) .150 (3.81) 18° typ. .020 (.051) min. .031 (0.80) .035 (0.90) .100 (2.54) typ. .010 (.25) .014 (.35) .300 (7.62) .347 (8.82) .110 (2.79) .150 (3.
