DLG2416 4-Character 5x7 Dot Matrix Alphanumeric Intelligent Display

The DLR/DLO/DLG2416 is a four digit 5x7 dot matrix display module with a built-in CMOS integrated circuit. This display is X/Y stackable. The integrated circuit contains memory, ASCII ROM decoder, multiplexing circuitry and drivers. Data entry is asynchronous and can be random. A display system can .
DLR2416 HIGH EFFICIENCY RED DLO2416 GREEN DLG2416 RED .200” 4-Character 5x7 Dot Matrix Alphanumeric IntelligentDisplay® with Memory/Decoder/Driver Package Dimensions in inches (mm) .031 (.79) .250 (6.35) .136 (3.45) .260 (6.60) ref. .031 (.79) .198 (5.03) .1.00 max. (25.4) .Pin 1 Indicator Part No. EIA Date Code .050 4 pl. (1.27) .160 ±.020 (4.06 ±.51) .095 (2.41) ref. DLX2416 SIEMENS YYWW Z .800 (20.32) max. .600±.020 (15.24 ±.51) .012 (.30) ±.002 (.05) 18 pl. .070 (1.78) ±.003 (.08) .010 (.

DLG2416 Features

* Dot Matrix Replacement for DL2416T

* 0.200" 5 x 7 Dot Matrix Characters

* 128 Special ASCII Characters for English, German, Italian, Swedish, Danish, and Norwegian Languages

* Wide Viewing Angle: X Axis 50° Maximum, Y Axis ± 75° Maximum

* Close Multi-line Sp

DLG2416 Datasheet (214.01 KB)

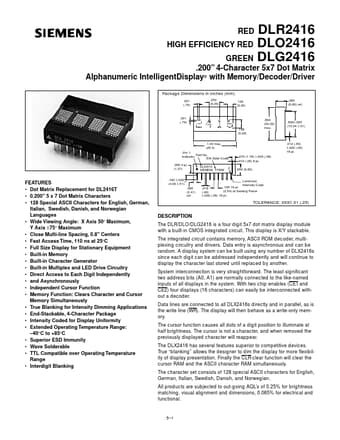

Preview of DLG2416 PDF
DLG2416 Datasheet Preview Page 2 DLG2416 Datasheet Preview Page 3

Datasheet Details

Part number:

DLG2416

Manufacturer:

Siemens Semiconductor Group

File Size:

214.01 KB

Description:

4-character 5x7 dot matrix alphanumeric intelligent display.
