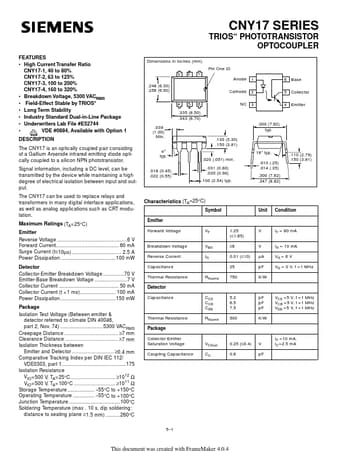

CNY17 - TRIOS PHOTOTRANSISTOR OPTOCOUPLER

Siemens Semiconductor Group

Datasheet Details

Part number	CNY17
Manufacturer	Siemens Semiconductor Group
File Size	146.57 KB
Description	TRIOS PHOTOTRANSISTOR OPTOCOUPLER
Datasheet	CNY17_SiemensSemiconductorGroup.pdf

The CNY17 is an optically coupled pair consisting of a Gallium Arsenide infrared emitting diode optically coupled to a silicon NPN phototransistor.

High Current Transfer Ratio CNY17-1, 40 to 80% CNY17-2, 63 to 125% CNY17-3, 100 to 200% CNY17-4, 160 to 320%.
Breakdown Voltage, 5300 VACRMS.
Field-Effect Stable by TRIOS.
Long Term Stability.
Industry Standard Dual-in-Line Package.
Underwriters Lab File #E52744 V.
VDE #0884, Available with Option 1 D E Dimensions in inches (mm) Pin One ID 3 .248 (6.30) .256 (6.50) 4 5 6 2 1 Anode 1 Cathode 2 NC 3 6 Base 5 Collector 4 Emitter.
