BSM25GAL120DN2, IGBT

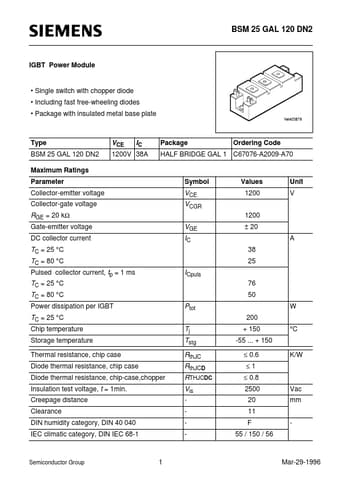

BSM 25 GAL 120 DN2 IGBT Power Module Single switch with chopper diode Including fast free-wheeling diodes Package with insulated metal base plate Type BSM 25 GAL 120 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage VCE IC Package Ordering Code 1200V 38A HALF BRIDGE GAL 1 C67076-A2009-A70 Symbol Values 1200 1200 Unit V VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 38 25 TC = 25 °C TC = 80 °C
