BSM150GB120DN2, IGBT

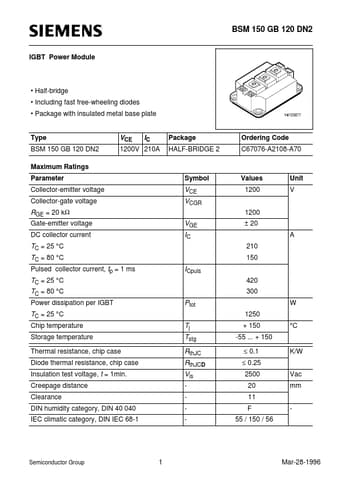

BSM 150 GB 120 DN2 IGBT Power Module Half-bridge Including fast free-wheeling diodes Package with insulated metal base plate Type BSM 150 GB 120 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage VCE IC Package HALF-BRIDGE 2 Ordering Code C67076-A2108-A70 1200V 210A Symbol Values 1200 1200 Unit V VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 210 150 TC = 25 °C TC = 80 °C Pulsed collector curre
