BC818-16 Datasheet - Siemens Semiconductor Group

BC818-16 NPN Silicon AF Transistors

NPN Silicon AF Transistors BC 817 BC 818 q q q q q For general AF applications High collector current High current gain Low collector-emitter saturation voltage Complementary types: BC 807, BC 808 (PNP) Type BC 817-16 BC 817-25 BC 817-40 BC 818-16 BC 818-25 BC 818-40 Marking 6As 6Bs 6Cs 6Es 6Fs 6Gs Ordering Code Q62702-C1732 Q62702-C1690 Q62702-C1738 Q62702-C1739 Q62702-C1740 Q62702-C1505 Pin Configuration 1 2 3 B E C Package1) SOT-23 1) For detailed information see chapter Package Out.

BC818-16 Datasheet (130.70 KB)

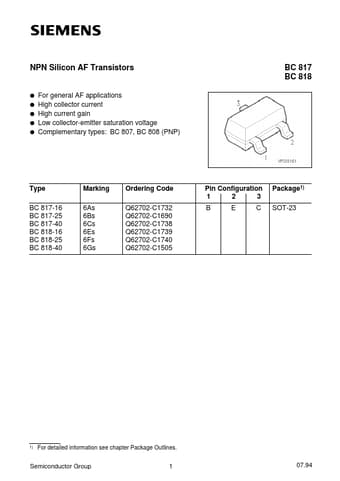

Preview of BC818-16 PDF
BC818-16 Datasheet Preview Page 2 BC818-16 Datasheet Preview Page 3

Datasheet Details

Part number:

BC818-16

Manufacturer:

Siemens Semiconductor Group

File Size:

130.70 KB

Description:

Npn silicon af transistors.
