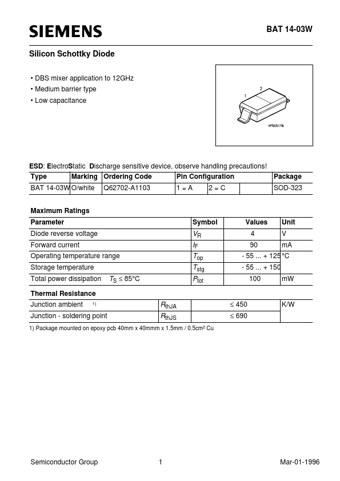

BAT 14-03W Silicon Schottky Diode
• DBS mixer application to 12GHz • Medium barrier type • Low capacitance
ESD: ElectroStatic Discharge sensitive device, observe handling precautions! Type Marking Ordering Code Q62702-A1103 Pin Configuration 1=A 2=C Package SOD-323 BAT 14-03W O/white Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Storage temperature Total power dissipation Thermal Resistance Junction ambient
1)
Symbol
Values 4 90 - 55 ... + 150 100
Unit V mA
VR IF Top Tstg TS ≤ 85°C Ptot
≤ 450 ≤ 690
- 55 ... + 125 °C mW
RthJA RthJS
K/W
Junction - soldering point
1) Package mounted on epoxy pcb 40mm x 40mmm x 1.5mm / 0.
