BAR64-03 - Silicon PIN Diode

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAR64-03W surface mount RF PIN diode Infineon Technologies AG
BAR64-02EL Silicon PIN Diode Infineon
BAR64-02L Silicon PIN Diode Infineon Technologies AG
BAR64-02V surface mount RF PIN diode Infineon
BAR64-02V GENERAL PURPOSE PIN DIODES JCET

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
BAR64-03W Silicon PIN Diode
BAR64-02 Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz)
BAR64-02W Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz)
BAR64-04 Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and swirches Freqency range above 1 MHz)
BAR64-04W Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz)

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

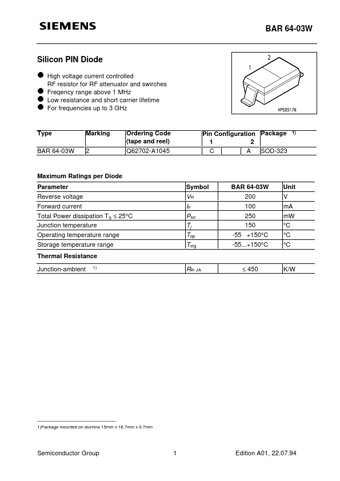

BAR 64-03W Silicon PIN Diode l High voltage current controlled RF resistor for RF attenuator and swirches l Freqency range above 1 MHz l Low resistance and short carrier lifetime l For frequencies up to 3 GHz Type BAR 64-03W Marking 2 Ordering Code (tape and reel) Q62702-A1045 Pin Configuration Package 1 2 C A SOD-323 1) Maximum Ratings per Diode Parameter Reverse voltage Forward current Total Power dissipation TS ≤ 25°C Junction temperature Operating temperature range Storage temperature range Thermal Resistance Junction-ambient 1) Symbol BAR 64-03W 200 100 250 150 -55 +150°C -55...+150°C Unit V mA mW °C °C °C VR IF Ptot Tj Top Tstg Rth JA ≤ 450 K/W _________________________ 1)Package mounted on alumina 15mm x 16.7mm x 0.7mm Semiconductor Group 1 Edition A01, 22.07.
