DM133 - 16-Bit Constant Current LED Drivers

Description

The DM133 is a constant current driver specifically designed for LED display applications.

The device includes a 16-bit shift register, two latches, and constant current drivers on a single Silicon CMOS chip.

Features

  • z Constant Current Output: Current with one resistor for 5mA to 60mA z Maximum Clock Frequency: 25MHz (Max. ) z Power Supply Voltage: 3.3V to 5.0V z CMOS Compatible Input/Output z Package: HSOP28, SSOP28, QFN32 z Constant Current Matching: 10mA ~ 60mA : Bit-to-Bit : ± 4.0% (Max)、 Chip-to-Chip: ± 10.0% (Max) 5mA ~ 10mA : Bit-to-Bit : ± 6.0% (Max)、 z Maximum Output Voltage: Chip-to-Chip: ± 12.0% (Max) 17V z Thermal Alarm Function: Error signal output when junction temperature exc.

📥 Download Datasheet

Datasheet Details

Part number DM133
Manufacturer SiTi
File Size 261.14 KB
Description 16-Bit Constant Current LED Drivers
Datasheet download datasheet DM133 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DM130036 15V / 30V Selectable Output & 40 Hi-V Channels Driver IC DAVICOM
DM1301-7R 50 Watt DC-DC Converters Power-One
DM130120 15V / 30V Selectable Output & 122 Hi-V Channels Driver IC DAVICOM
DM130160 15V / 30V Selectable Output & 162 Hi-V Channels Driver IC DAVICOM
DM134 (DM134 - DM136) 16-Bit Constant Current LED Drivers Silicon Touch Technology

Other Datasheets by SiTi

Part Number Description
DM132 16-Channel PWM-Controlled Constant Current Driver
DM134B (DM134B / DM135B) 16 BIT CONSTANT CURRENT LED DRIVERS
DM135B (DM134B / DM135B) 16 BIT CONSTANT CURRENT LED DRIVERS
DM137 16-bit Constant Current LED Driver
DM13A 16-bit Constant Current LED Driver

Full PDF Text Transcription

Click to expand full text

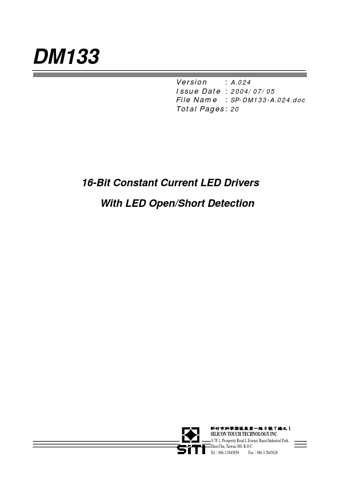

DM133 Version : A.024 Issue Date : 2004/07/05 File Name : SP-DM133-A.024.doc Total Pages : 20 16-Bit Constant Current LED Drivers With LED Open/Short Detection 9 7 1 SILICON TOUCH TECHNOLOGY INC. 9-7F-1, Prosperity Road I, Science Based Industrial Park, Hsin-Chu, Taiwan 300, R.O.C. Tel：886-3-5645656 Fax：886-3-5645626 SILICON TOUCH TECHNOLOGY INC. DM133 16-Bit Constant Current LED Drivers with LED Open/Short Detection General Description DM133 The DM133 is a constant current driver specifically designed for LED display applications. The device includes a 16-bit shift register, two latches, and constant current drivers on a single Silicon CMOS chip. Its built-in open/short detection and thermal alarm circuits help the user to detect the overheating of the IC and LED failures.
