2CL703 - Fast Recovery High Voltage Diodes

Features

  • Supersmall size High reliability High speed switching.

📥 Download Datasheet

Datasheet Details

Part number 2CL703
Manufacturer SiPower
File Size 60.53 KB
Description Fast Recovery High Voltage Diodes
Datasheet download datasheet 2CL703 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2CL70 HIGH VOLTAGE DIODES GETE ELECTRONICS
2CL70 Fast Recovery High Voltage Diodes JGD
2CL70 High Voltage Rectifier American Microsemiconductor
2CL70 LOW CURRENT SILICON RECTIFIER DIODES EDI
2CL70 High Voltage Diode Leadsun

Other Datasheets by SiPower

Part Number Description
2CL70 Fast Recovery High Voltage Diodes
2CL704 Fast Recovery High Voltage Diodes
2CL71 Fast Recovery High Voltage Diodes
2CL72A Fast Recovery High Voltage Diodes
2CL73A Fast Recovery High Voltage Diodes

Full PDF Text Transcription

Click to expand full text

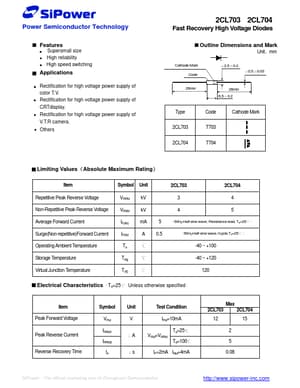

Power Semiconductor Technology Features Supersmall size High reliability High speed switching Applications Rectification for high voltage power supply of color T.V. Rectification for high voltage power supply of CRTdisplay. Rectification for high voltage power supply of V.T.R camera. Others 2CL703 2CL704 Fast Recovery High Voltage Diodes Outline Dimensions and Mark Unit mm Cathode Mark Code 2.5 0.2 0.5 0.03 26min 26min 6.5 0.2 Type Code Cathode Mark 2CL703 T703 2CL704 T704 Limiting Values Absolute Maximum Rating Item Symbol Unit 2CL703 2CL704 Repetitive Peak Reverse Voltage VRRM kV 3 4 Non-Repetitive Peak Reverse Voltage Average Forward Current Surge(Non-repetitive)Forward Current VRSM IF(AV) IFSM kV mA 5 A 0.
