SUF30J, SUF30G - ULTRAFAST EFFICIENT PLASTIC RECTIFIER

Shunye

📥 Download Datasheet

SUF30J Datasheet Preview — This datasheet PDF includes multiple part numbers: SUF30J, SUF30G. Please refer to the document for exact specifications by model.

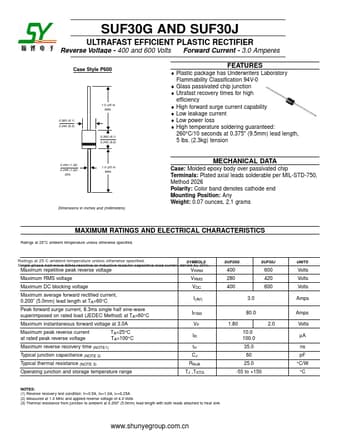

datasheet Preview Page 2

Datasheet Details

Part number	SUF30J, SUF30G
Manufacturer	Shunye
File Size	53.52 KB
Description	ULTRAFAST EFFICIENT PLASTIC RECTIFIER
Datasheet	SUF30G-Shunye.pdf
Note	This datasheet PDF includes multiple part numbers: SUF30J, SUF30G. Please refer to the document for exact specifications by model.

SUF30J Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junction.
Utrafast recovery times for high efficiency.
High forward surge current capability.
Low leakage current.
Low power loss.
High temperature soldering guaranteed: 260°C/10 seconds at 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension 0.052 (1.32) 0.048 (1.22) DIA. 1.0 (25.4) MIN. Dimensions in inches and (millimeters) MECH.
