S4VB60 - Bridge Diodes

📥 Download Datasheet

📁 Similar Datasheet

  • S4VB - Bridge Diode (ETC)
  • S4VB10 - Silicon Rectifier Diodes / Bridge (Shindengen Electric)
  • S4VB20 - Bridge Diode(200V 4A) (Shindengen Electric Mfg.Co.Ltd)
Other Datasheets by Shindengen

    Full PDF Text Transcription

    Click to expand full text

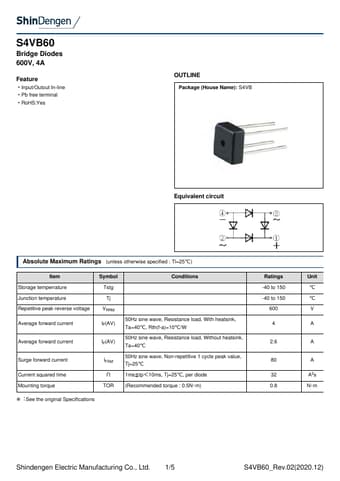

    S4VB60 Bridge Diodes 600V, 4A Feature Input/Outout In-line Pb free terminal RoHS:Yes OUTLINE Package (House Name): S4VB Equivalent circuit Absolute Maximum Ratings (unless otherwise specified : Tl=25℃) Item Storage temperrature Junction temperature Repetitive peak reverse voltage Average forward current Average forward current Surge forward current Current squared time Mounting torque Symbol Conditions Tstg Tj VRRM IF(AV) 50Hz sine wave, Resistance load, With heatsink, Ta=40℃, Rth(f-a)=10℃/W IF(AV) 50Hz sine wave, Resistance load, Without heatsink, Ta=40℃ 50Hz sine wave, Non-repetitive 1 cycle peak value, IFSM Tj=25℃ I²t 1ms≦tp＜10ms, Tj=25℃, per diode TOR (Recommended torque : 0.5N･m) ※︓See the original Specifications Ratings -40 to 150 -40 to 150 600 4 2.6 80 32 0.
