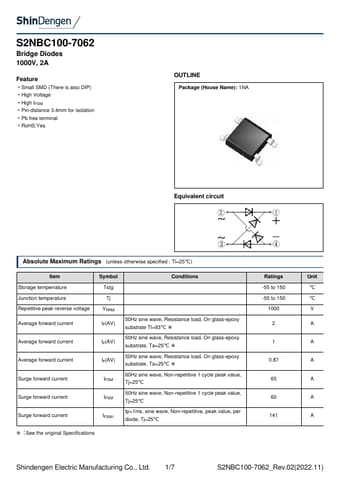

S2NBC100-7062 Bridge Diodes 1000V, 2A Feature Small SMD (There is also DIP) High Voltage High IFSM Pin-distance 3.4mm for isolation Pb free terminal RoHS:Yes OUTLINE Package (House Name): 1NA Equivalent circuit Absolute Maximum Ratings (unless otherwise specified : Tl=25℃) Item Storage temperrature Junction temperature Symbol Tstg Tj Conditions Ratings Unit -55 to 150 ℃ -55 to 150 ℃ Repetitive peak reverse voltage VRRM 1000 V 50Hz sine wave, Resistance load, On glass-epoxy Average forward current IF(AV) substrate Tl=93℃ ※ 2 A 50Hz sine wave, Resistance load, On glass-epoxy Average forward current IF(AV) substrate, Ta=25℃ ※ 1 A 50Hz sine wave, Resistance load, On glass-epoxy Average forward current IF(AV) substrate, Ta=25℃ ※ 0.
