HDF1215 - (HDF-xxxx) 3W HD Series

Download the HDF1215 datasheet PDF (HDF-1215 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (hdf-xxxx) 3w hd series.

Description

PIN # FUNCTION-D FUNCTION-S 1 OUT NC 2 COM OUT 3 OUT + OUT + 4, 5 IN IN

APPLICATION EXAMPLES 1.

3.

OUT

Features

  • s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input s Input and Output Filters.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HDF-1215_Shindengen.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HDF1215
Manufacturer Shindengen
File Size 108.51 KB
Description (HDF-xxxx) 3W HD Series
Datasheet download datasheet HDF1215 Datasheet

📁 Similar Datasheet

Other Datasheets by Shindengen

Full PDF Text Transcription

Click to expand full text

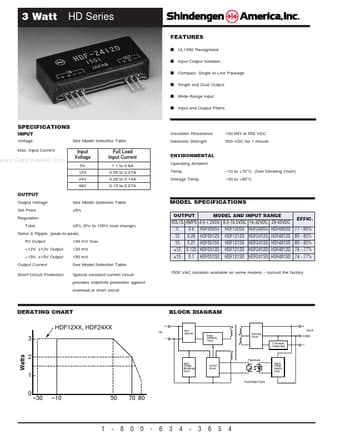

3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input s Input and Output Filters SPECIFICATIONS INPUT Voltage Max. Input Current Insulation Resistance See Model Selection Table Input Voltage 5V 12V 24V 48V OUTPUT Output Voltage Set Point Regulation Total ±5% (5% to 100% load change) See Model Selection Table ±5% Full Load Input Current 1.1 0.55 0.26 0.15 to to to to 0.6A 0.27A 0.14A 0.07A Dielectric Strength ENVIRONMENTAL Operating Ambient Temp. Storage Temp. –10 to +70°C (See Derating Chart) –30 to +80°C 100 M⍀ at 500 VDC 500 VDC for 1 minute www.DataSheet4U.com MODEL SPECIFICATIONS OUTPUT VOLTS AMPS 5 0.6 12 0.26 15 0.21 ±12 0.125 ±15 0.1 MODEL AND INPUT RANGE 4.0-7.2VDC 8.0-16.
